Durable and Easy Clean Adjustable Speed Chain Scraper Conveyor for Material Transmission

Durable and Easy Clean Adjustable Speed Chain Scraper Conveyor for Material Transmission

Marchio:	WESEW
Numero di modello:	W003
MOQ:	1pcs
prezzo:	US$75000~US$20,000/set
Condizioni di pagamento:	T/T, Western Union
Capacità di approvvigionamento:	100 set al mese

Informazione dettagliata

Descrizione del prodotto

Informazione dettagliata

Luogo di origine:

Cina

Certificazione:

Materiale:

Acciaio al carbonio

Funzione materiale:

Resistente al calore, resistente al fuoco

Applicazione:

Industria chimica, trasporto di cereali, trasporto minerario, centrale elettrica

Industrie applicabili:

Impianti di produzione, energia e mining

Componenti principali:

Motore, motore

Dimensione (l*w*h):

Personalizzato

Specifiche:

Personalizzato

Struttura:

Trasportatore a catena

Imballaggi particolari:

Cassa in legno

Capacità di alimentazione:

100 set al mese

Evidenziare:

Durable Scraper Conveyor

Adjustable Speed Drag Chain Conveyor

Simple Operation Chain Scraper Conveyor

Descrizione del prodotto

Custom Scraper Conveyor for Industrial Material Handling

Our custom-built scraper conveyor is engineered for efficient material conveying in demanding industrial environments. This drag chain conveyor system excels in handling dry slag, ash, and various bulk materials across multiple industries.

Key Specifications

Material	Stainless Steel, Carbon Steel
Special Features	Durable, Heat Resistant, Easy to Clean
Speed	Adjustable
Applicable Industries	Manufacturing Plant, Energy & Mining
Dimensions	Customized to Your Requirements
Voltage	220V, 380V or Local Power Standard
Warranty	1 Year

System Overview

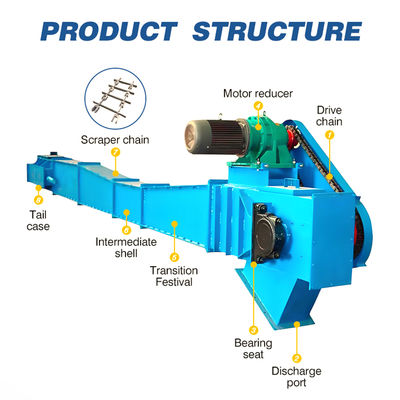

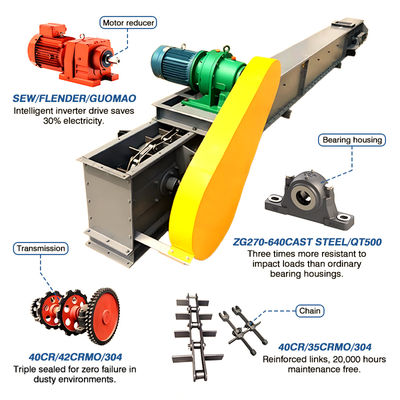

The chain scraper conveyor is a continuous conveying system composed of chain, scraper, driving device and trough body. The motor-driven chain propels the scraper to push material along the trough, offering simple operation, excellent sealing, and long-distance conveying capability.

Core Advantages: Compact structure, superior sealing performance, high conveying efficiency, and exceptional adaptability to various materials and environments.

Material Handling Capabilities

Wide adaptability for diverse material types
Handles materials ranging from light powders to medium-density granular and small block materials
Grain Industry: Wheat, corn, soybeans, flour, rice bran
Chemical Industry: Plastic pellets, fertilizers, calcium carbonate, fly ash
Power Industry: Biomass fuel, sawdust, wood chips
Building Materials: Cement, slag, crushed gypsum

Durable Construction Features

Our wear-resistant design withstands high temperature, high pressure, and corrosive environments, making it an efficient solution for bulk material conveying in challenging conditions.
