Industrial Double-Spiral Screw Classifier Sand Washing Machine for Fine Sand Gravel Grit Silica Washing

Industrial Double-Spiral Screw Classifier Sand Washing Machine for Fine Sand Gravel Grit Silica Washing

Marchio:	WeSeW
Numero di modello:	- Non lo so.
MOQ:	1pcs
prezzo:	US$20,000~US$80,000 per pc
Condizioni di pagamento:	T/T, Western Union
Capacità di approvvigionamento:	10000 pezzi al mese

Informazione dettagliata

Descrizione del prodotto

Informazione dettagliata

Luogo di origine:

Cina

Certificazione:

CE,UL

Materiale:

Acciaio inossidabile/personalizzato

Funzione materiale:

Resistente al calore, resistente al fuoco

Applicazione:

Industria chimica, trasporto di cereali, trasporto minerario, centrale elettrica

Componenti principali:

Motore

Dimensione (l*w*h):

Personalizzato

Specifiche:

Personalizzato

Struttura:

Sistema di trasporto

Imballaggi particolari:

Cassa in legno

Capacità di alimentazione:

10000 pezzi al mese

Evidenziare:

Fine Sand Gravel Grit Silica Washing Sand Screw Washer

Industrial Spiral Sand Washer

Double-Spiral Screw Classifier Sand Washing Machine

Descrizione del prodotto

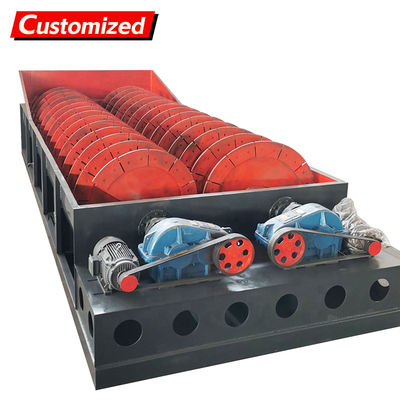

Industrial Double-Spiral Screw Classifier Sand Washing Machine

The double-screw sand washer is a high-efficiency industrial solution for washing fine sand, gravel, grit, and silica. This robust equipment operates on the principle of differential sedimentation velocity to classify particles between 1.5mm-0.03mm, effectively separating waste mud and water from valuable ores.

Product Specifications

Product Name	Industrial Spiral Screw Classifier Sand Washing Machine
Key Feature	Spiral sand washing machine
Motor Type	AC Motor
Capacity	6-400t/h
Core Components	Bearing, Gearbox, Motor
Weight	500 KG
Applications	Motorway construction, hydropower projects, building material washing, classification, and contaminant removal

Key Advantages

Low power consumption with high classifying efficiency
Heavy-duty construction for extended working life
Dual control system (manual and electric lifting device)
Adjustable weir height with rigid tank structure
Minimal loss of medium-fine sand and stone powder
Energy-efficient operation with large processing capacity
Environmentally friendly design with water recycling capability

Operational Features

This spiral classifier serves as mechanical grading equipment in beneficiation processes. The double-spiral design efficiently filters coarse material while discharging fine material through the overflow tube. It's particularly effective for ore washing, desliming, and dehydration applications.
