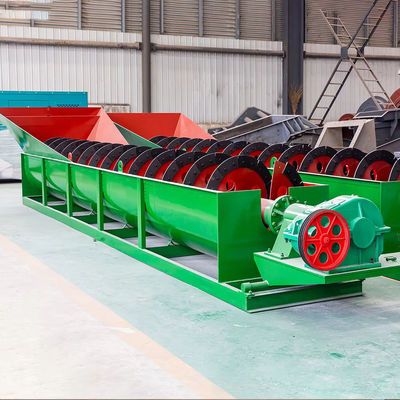

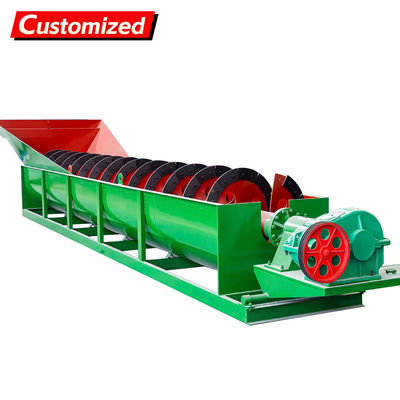

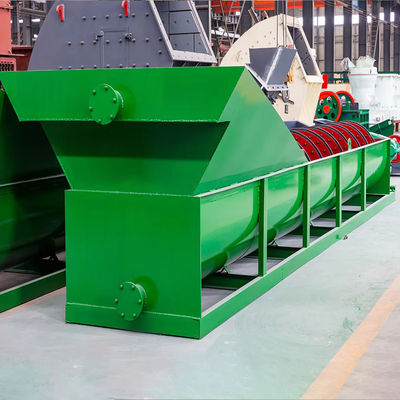

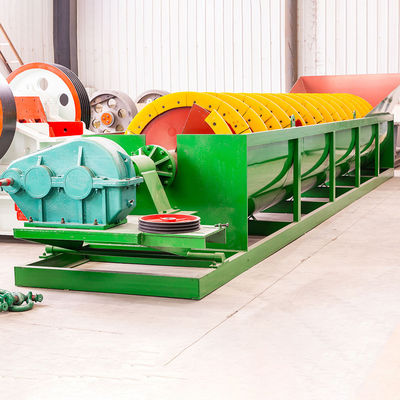

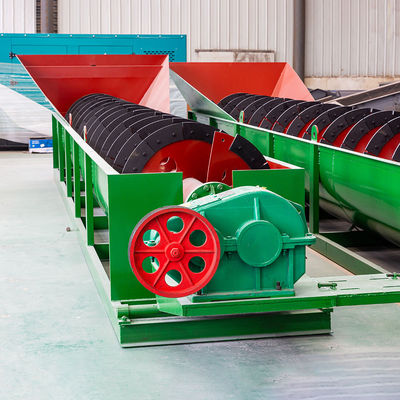

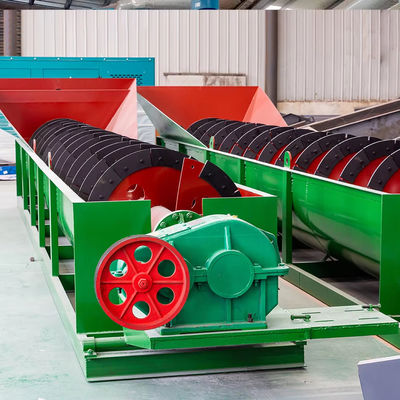

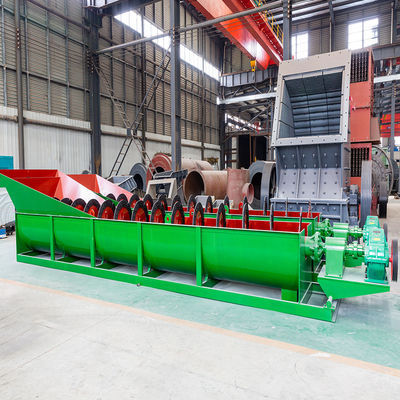

Customized Stainless Steel Spiral Sand Washer with 40-280 tons/hour Capacity for Efficient Gravel Washing

Customized Stainless Steel Spiral Sand Washer with 40-280 tons/hour Capacity for Efficient Gravel Washing

Marchio:	WeSeW
Numero di modello:	- Non lo so.
MOQ:	1pcs
prezzo:	US$20,000~US$80,000 per pc
Condizioni di pagamento:	T/T, Western Union
Capacità di approvvigionamento:	10000 pezzi al mese

Informazione dettagliata

Descrizione del prodotto

Informazione dettagliata

Luogo di origine:

Cina

Certificazione:

CE,UL

Materiale:

Acciaio inossidabile/personalizzato

Funzione materiale:

Resistente al calore, resistente al fuoco

Applicazione:

Industria chimica, trasporto di cereali, trasporto minerario, centrale elettrica

Componenti principali:

Motore

Dimensione (l*w*h):

Personalizzato

Specifiche:

Personalizzato

Struttura:

Sistema di trasporto

Imballaggi particolari:

Cassa in legno

Capacità di alimentazione:

10000 pezzi al mese

Evidenziare:

Customized Spiral Sand Washer

Stainless Steel Screw Sand Washing Machine

40-280 tons/hour Sand Screw Washer

Descrizione del prodotto

Customized Single Spiral Aggregate Sand Gold Washing Machine

Our industrial-grade Spiral Sand Washing Machine efficiently cleans and separates dirt, dust, and impurities from sand, gravel, or crushed stone. Utilizing a rotating screw mechanism with water flow, it delivers high-quality washed materials for construction, mining, and aggregate applications.

Key Features

High cleaning efficiency: Removes dirt, clay and organic impurities effectively
Low water consumption: Environmentally friendly operation
Robust construction: Made of wear-resistant steel for durability
Energy efficient: AC motor with ISO9001 & CE certifications
Comprehensive support: 1-year warranty with lifetime spare parts supply

Technical Specifications

Product Name	Industrial Spiral Screw Classifier Sand Washing Machine
Motor Type	AC Motor
Capacity	6-400t/h
Core Components	Bearing, Gearbox, Motor
Weight	500 KG
Applications	Motorway construction, hydropower projects, building material washing, classification

Detailed Technical Parameters

Model	Spirals Number	Screw Diameter (mm)	Sink Length (mm)	Capacity (t/h)	Motor Power (kw)
XL920-7.5	1	920	3600	40-60	4P-11
2XL920-7.5	2	920	7500	90-120	4P-11X2
XL1120-7.5	1	1120	5000	40-120	4P-18.5
2XL1120-7.5	2	1120	10000	80-240	4P-18.5X2
XL1500-9	1	1500	9800	100-170	4P-22
2XL1500-9	2	1500	18000	200-280	4P-22X2

Working Principle

The Spiral Sand Washer operates through a synergistic process of agitation, settling and material transportation. As the sand-cement slurry enters the inclined trough, the rotating spiral blades agitate the mixture while gravity settles heavier sand particles. Lighter impurities remain in suspension and are washed away by water flow. The spiral simultaneously conveys the cleaned sand up the slope while discharging excess water through tank holes.

Environmental Protection Measures
